DES-CLICK Split Cable Gland
Spit Cable Gland with ingress protection of IP54. Tool free assembly. Available in M20, M32 and M63 sizes.

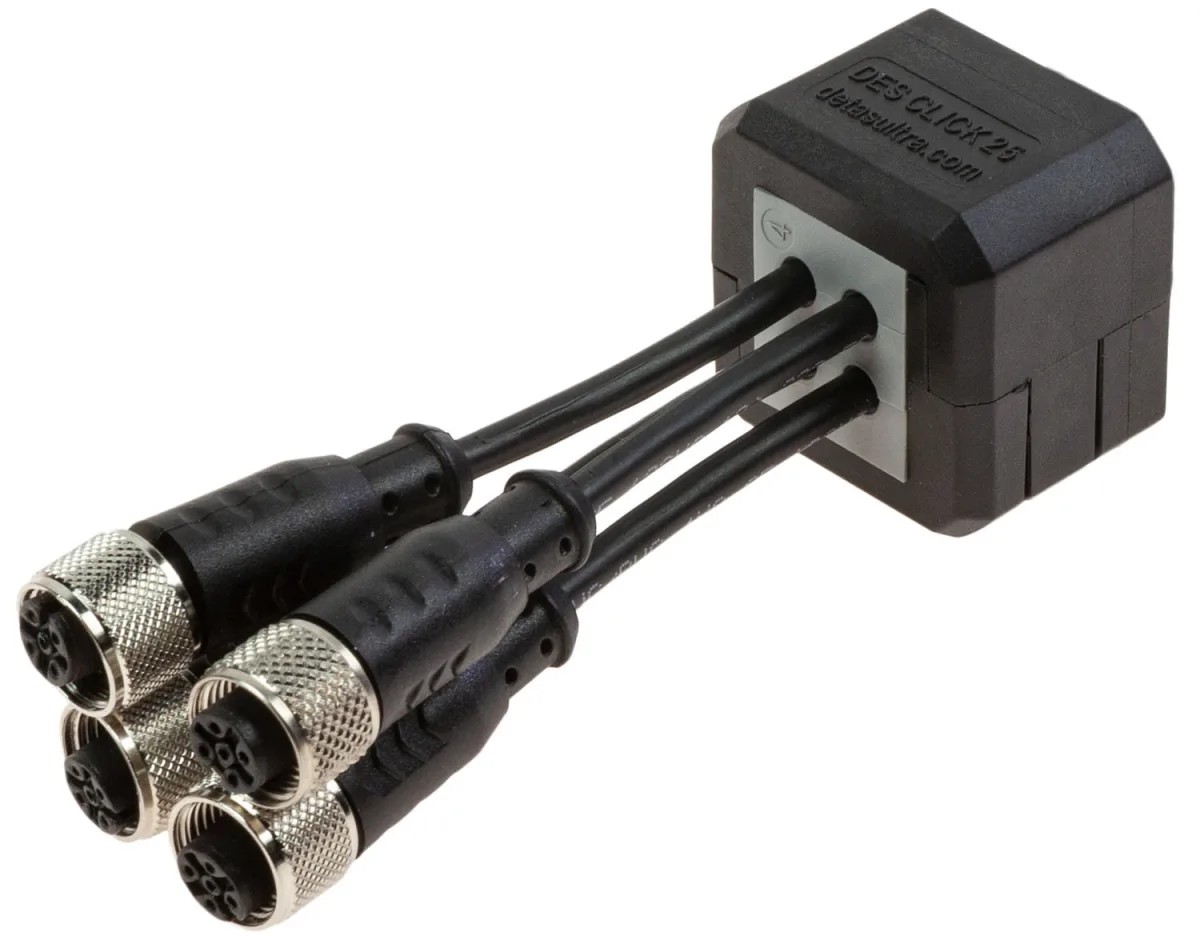

Splittable Cable Gland. Suitable for sealing and securing cables with connectors. Combination of split frame and rubber inserts to suit the cable. Ingress protection up to IP54.
Simple installation. One cut-out for multiple cables. Simply feed all cables through the one cut-out and then use the DES system to seal and secure the cables. Reduce installation times and costs.
Multiple frame sizes. M25, M32 and M63 sizes available. M63 version holds 4 small inserts or 1 large insert, allowing for greater flexibility.
Large number of cable inserts. Cable inserts from 2mm up to 34mm. Multi-hole inserts are also available ensuring the best use of space. See the full range of available inserts.
- Seal to IP54
- Sturdy Construction to IK10
- Flammability to UL94-VO
- Halogen and Silicon free.
- Temp Range -40 to +155 degrees C.
Product Data
| Part No. | Description | Size | Datasheet | CAD Data |
|---|---|---|---|---|
| 1731051020 | DES-CLICK 20 | M20 | Download | Request CAD |
| 1731051025 | DES CLICK 25 | M25 | Download | Request CAD |
| 1731051032 | DES CLICK 32 | M32 | Download | Request CAD |
Useful documents
- DES CLICK data sheet, 0.31MB
- Compatible Inserts, 0.32MB
