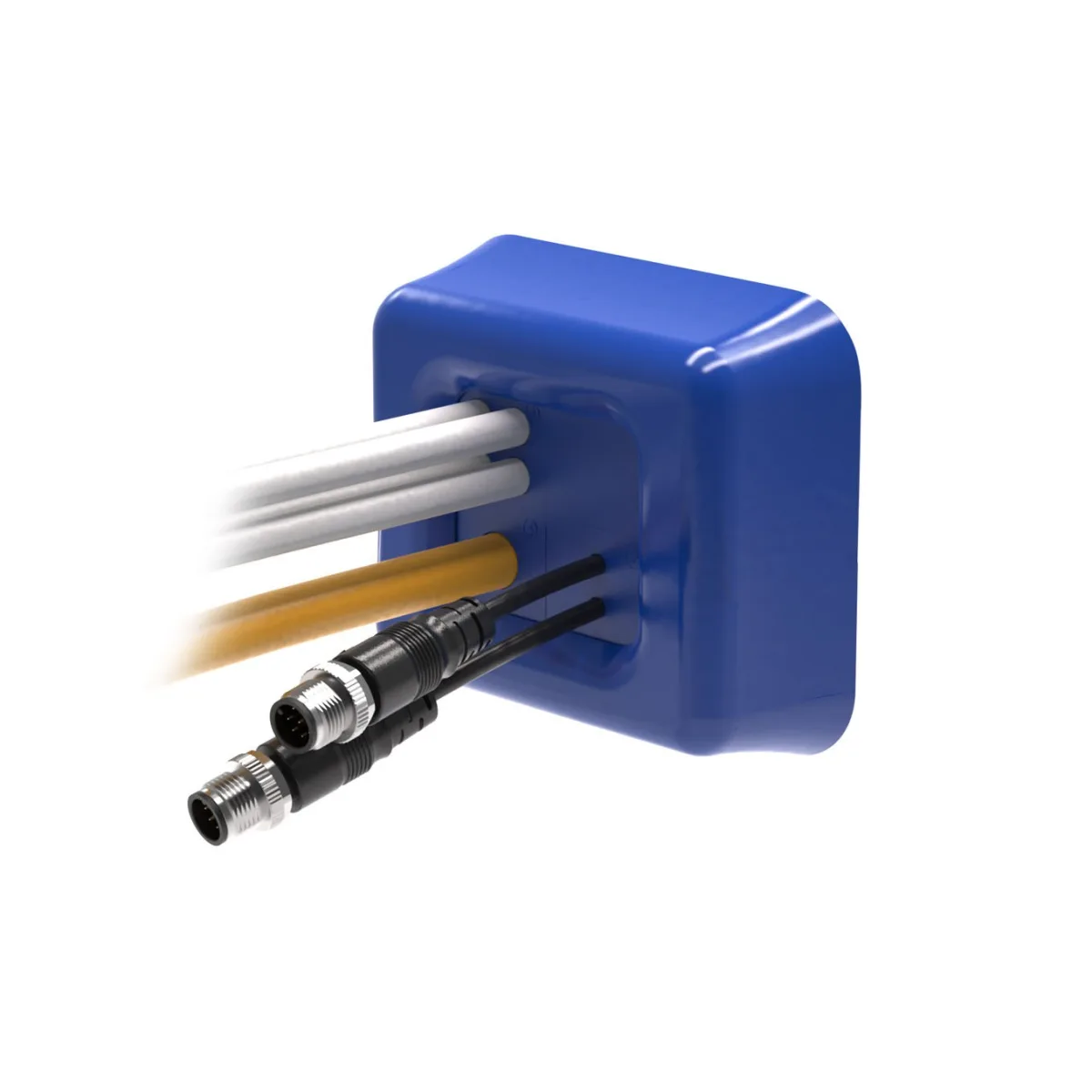

Divisible cable entry system with hygienic design
The DES CLEAN cable entry system combines the proven DES divisible frame with an FDA-approved cover, securely fastened using molded, co-molded threaded screws.
Engineered for food and pharmaceutical applications, the system is designed to minimize dirt accumulation, ensuring optimal hygiene standards. Its smooth, crevice-free surface enables easy and thorough cleaning, setting it apart as a unique solution in the market.

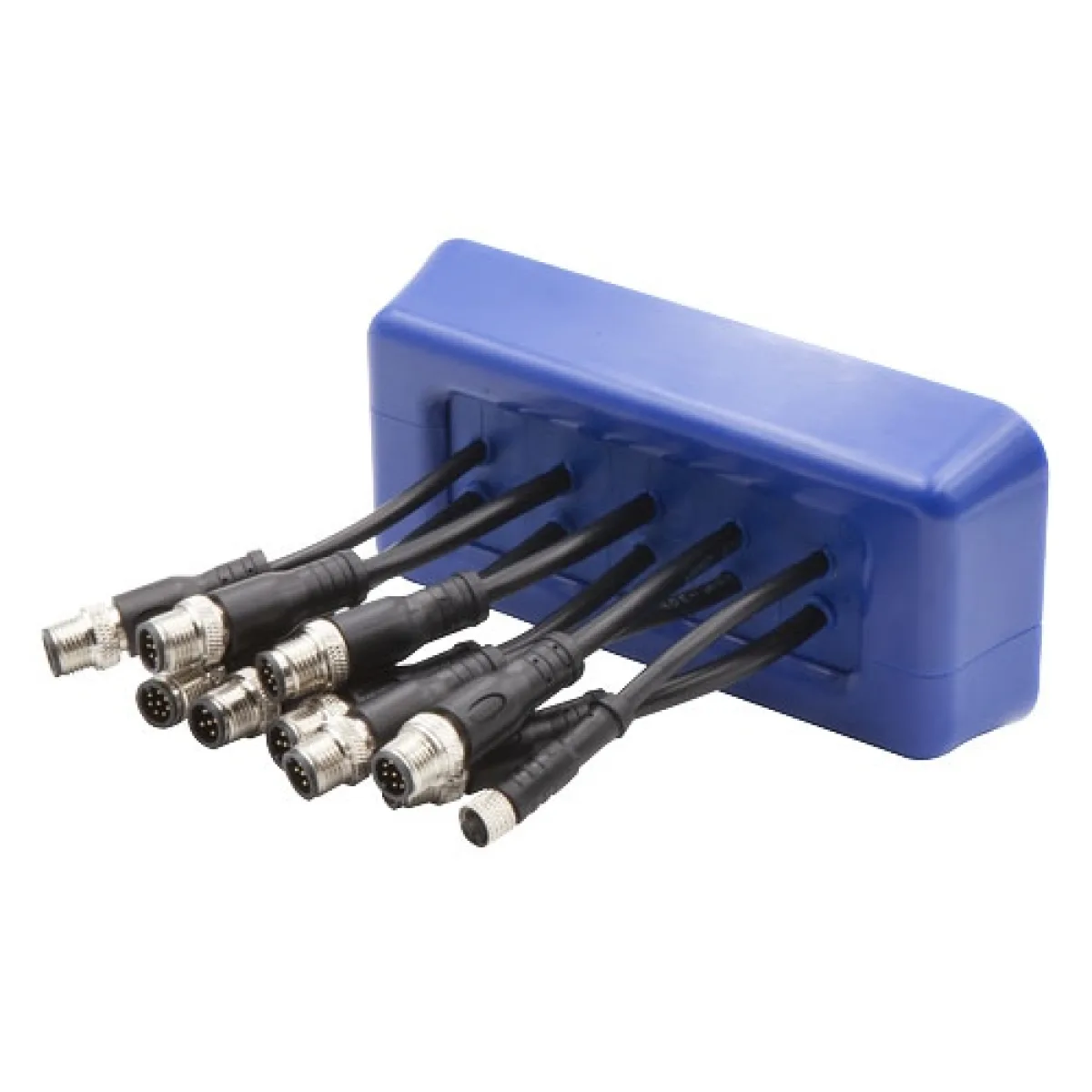

The DES 24 CLEAN accommodates cables with or without connectors, supporting diameters from 2 mm to 35 mm, offering versatility without compromising cleanliness or performance.
- Easily cleanable
- Frame screws in AISI304 Stainless Steel
- Strain relief according to EN 62444
- Without screw holes and sharp corners
- Fixing with threaded inserts
- Material: FDA approved PC (halogen and silicone free)
- Flammability: UL94-HB
- Temperature: -40°C… +80°C
