OSF Split Cable Gland

Compact split cable gland for cables with connectors

Sample Request Contact Us

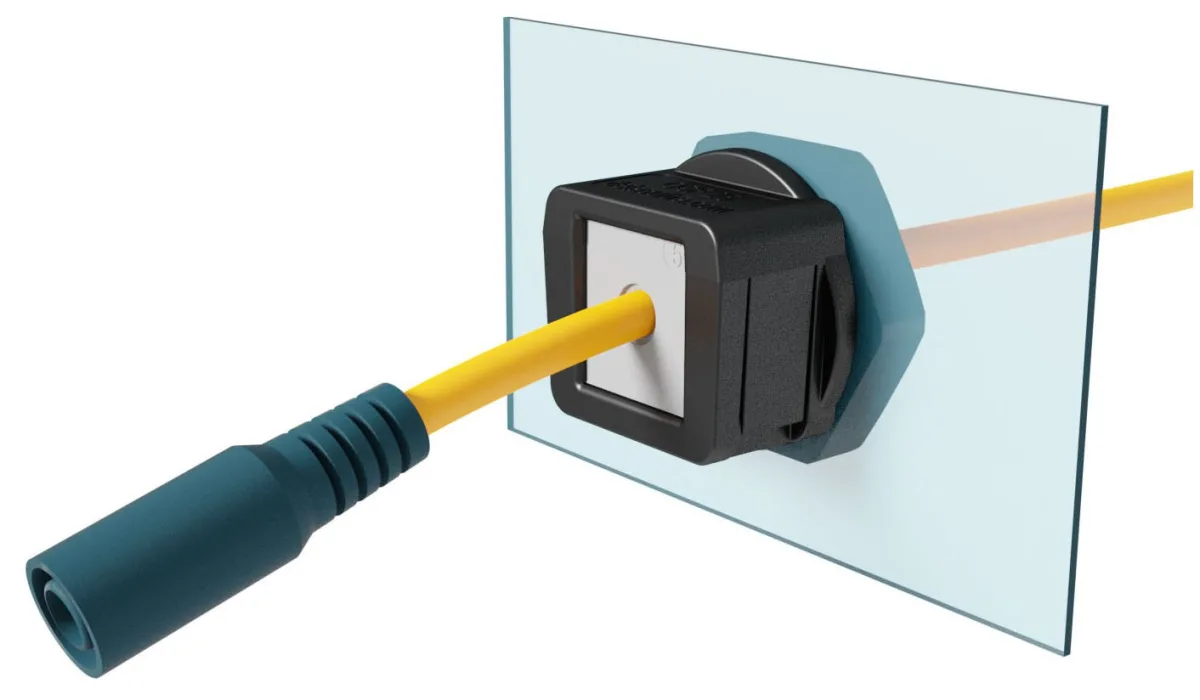

The OSF is a lightweight and low profile split cable gland. The gland is available in M16, M20, M25 and M32 metric thread sizes and used in conjunction with the SPC cable inserts.

The splittable nature of gland makes it ideal for sealing and securing cables that have integrated or moulded plugs. Cables can be secured without the need to cut or re-wire cables, saving installation time and avoiding any warranty issues. Subsequent changes can be made quickly and easily.

The system is suitable for sealing cables from 2mm up to 14mm. There are also cable inserts that allow for the access of 2 of 4 cables through the same gland. Thus, the system can save space as well as installation time.

  • Tool free assembly
  • IP54 ingress protection
  • Locknut included
  • UL94-VO flammability rating
  • Available in grey or black
  • Halogen and silicon free
