Splittable Cable Entry Frame for Cable Shielding

Sample Request Contact Us

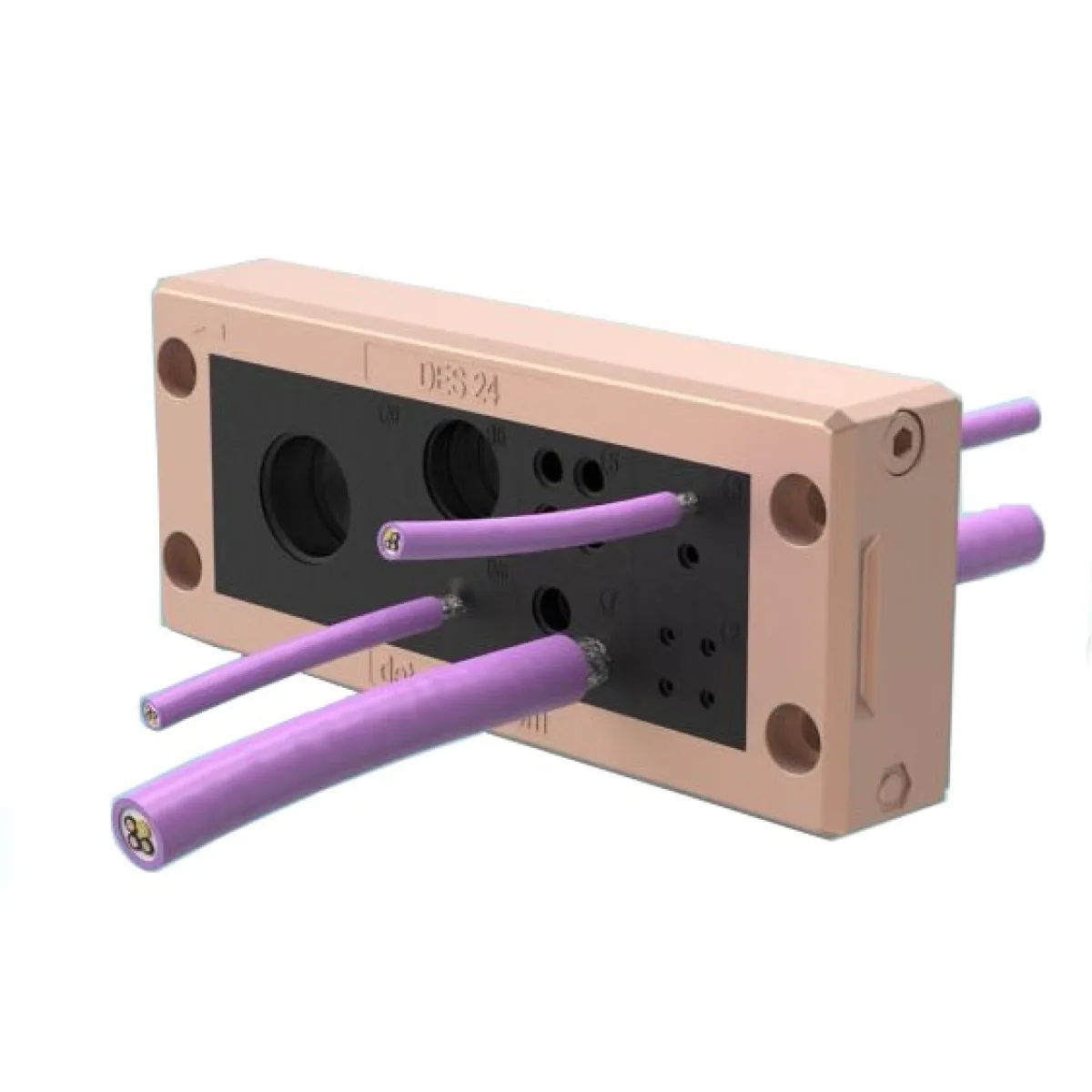

The DES EMC splittable frames are used when it is required to ground shielded cables in a fast and efficient way.
The frames are treated with a special conductive copper paint while the grommets are produced with TPE with an added conductive material.

Thanks to the mechanical connection to the panel from the fixing screws the cable shield is efficiently grounded without generating any further disturbances often created by metal brackets that become antennas.

  • Multiple configurations with small and large inserts / grommets
  • Large conductive area in contact with the cable
  • High levels of EMI shielding
  • Anti-static protection
  • Screws in 304 stainless steel

Related Documents

Certifications & Approvals

  • IP66 Ingress Protection
  • IK10 - Impact Rating
  • UL94-V0
  • UV - ISO 4892-2A
  • ROHS Compliant
