Aluminium Enclosures

Manufactured from high pressure die casting or gravity casting. Also enclosures from aluminium profiles

Sample Request Contact Us

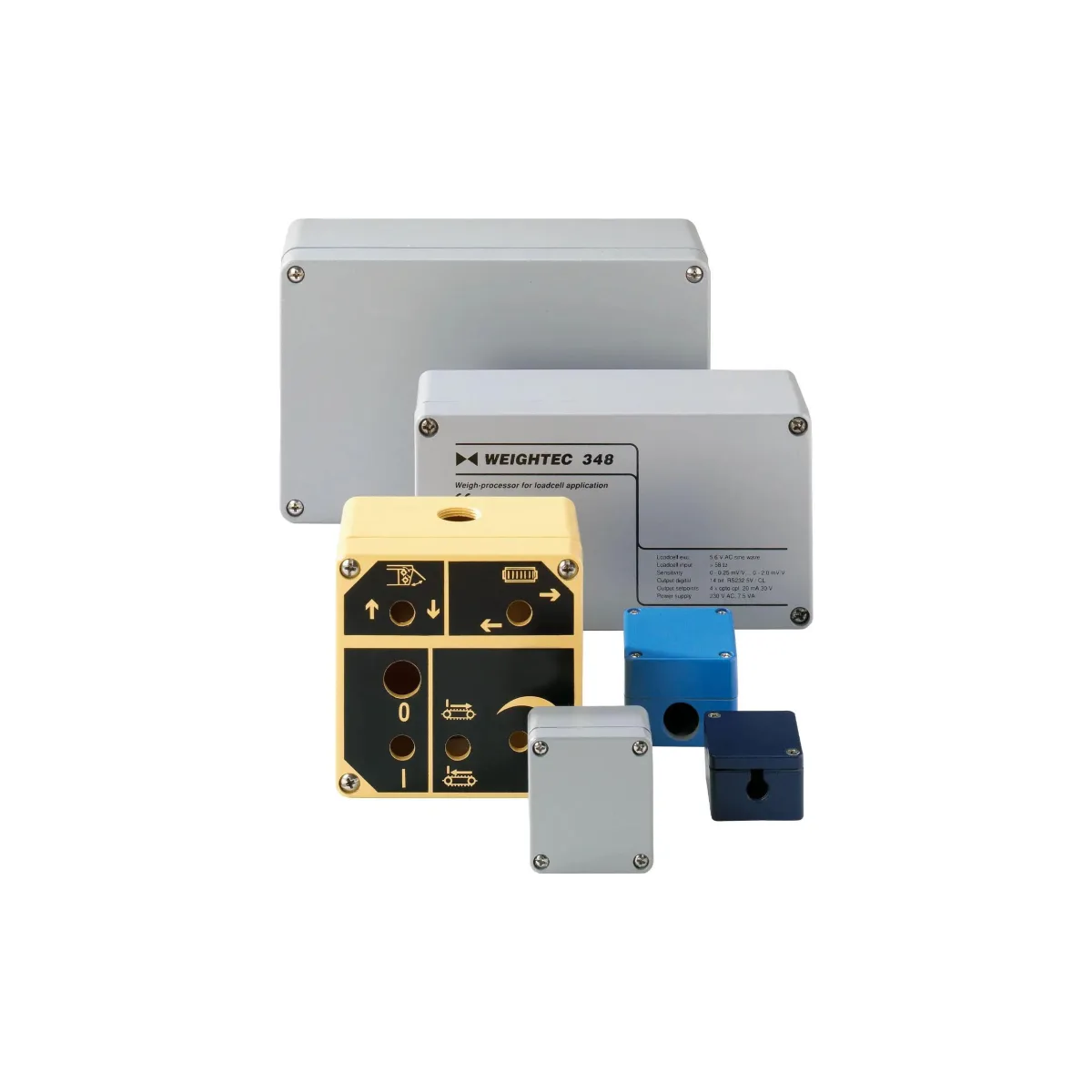

Multi-Box aluminium enclosures are designed for universal use across electrical, electronic, and pneumatic applications. Combining robust construction with sleek design, they safeguard sensitive components against water, dust, and mechanical impact while offering flexibility for customisation and installation.

Product Range

  • MBA Enclosures – Universal die-cast aluminium housings (IP66) for terminal, sensor, or junction box use.

  • Delta-Box Profile Enclosures – Modular aluminium profile housings (IP43/IP54) in seven sizes, ideal for electronics and control units.

  • Mini-Tast Enclosures – Compact keyboard and operator enclosures with slim extruded aluminium profiles for control and measurement technology.

  • Tast Enclosures – Larger keyboard/display housings in light/dark grey aluminium with integrated grooves for PCB or component assembly.


Technical Benefits

  • High protection classes: Up to IP66 (dust-tight and protected from powerful water jets).

  • Wide temperature resistance:

    • Standard models: –40 °C to +100 °C (MBA)

    • With silicone sealing: –50 °C to +140 °C

    • Delta-Box & Tast series: –20 °C to +80 °C

  • Material quality: Pressure or gravity die-cast aluminium for superior mechanical strength.

  • Sealing & corrosion resistance: Seamless foamed-in polyurethane or silicone gaskets; stainless-steel captive screws.

  • Customisation options: EMC versions, colour variants, wall/pole mounting kits, hinged covers, and accessory integration (battery compartments, screw nuts, rubber feet).

  • Easy processing: Smooth surfaces for machining, drilling, or surface finishing without design limits.
